Description

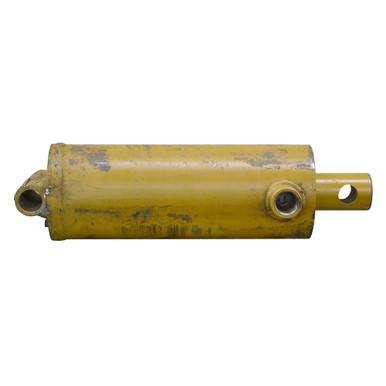

4″ x 8.625″ x 1.75″ HYD CYL
Unused old inventory. HEIL A1B3464, welded, single acting pull only hydraulic cylinder. Breather port in base end.
| SPECIFICATIONS |
- Single Acting
- Bore x Stroke 4″ x 8.625″
- Gland Retainer Wire ring
- Pressure 2500 PSI max.
- Rod Dia. 1.75″
- Rod Thickness 1.75″
|
- Extend Port 3/4″ NPT
- Breather Port 1/8″ NPT
- Retracted Length 14.25″
- Gland Face to Rod Pin Center 1.688″
- Shpg. 31 lbs.
|
| END MOUNTINGS |
|
- Rod End Thru-Hole
- Width 1.75″
- Pin Center to Base End 1.113″
- Pin Hole 0.875″
|
- Base End Cross-Tube
- O.D. 1.375″
- Width 4.5″
- Pin Hole 1″
|
