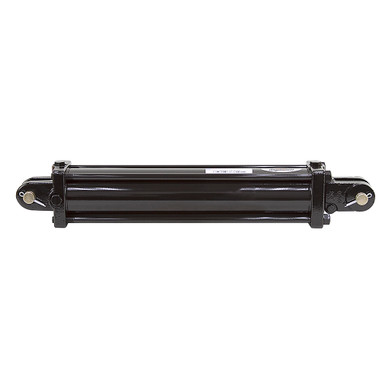

Name: 4" x 30" x 1.75" Double Acting Hydraulic Cylinder Prince Royal Plate B400300ABACA07B
Brand: toolingsupplyoutlet.com
SKU: 900210
Price: 137.10 USD
Availability: InStock

4″ x 30″ x 1.75″ Double Acting Hydraulic Cylinder Prince Royal Plate B400300ABACA07B

SKU: 900210 Category: hot sale

Description

PRINCE MFG. ROYAL PLATE DOUBLE ACTING TIE-ROD HYDRAULIC CYLINDER
Brand new, PRINCE Royal Plate Plus double acting tie-rod cylinders. Premium quality with superior materials and workmanship. The Royal Plate Plus cylinder combines two rod coatings to provide excellent wear, hardness and corrosion protection. Aircraft quality two-part polyester urethane paint that outperforms powder coating for the life of the cylinder. High quality seals and steel components. 3000 PSI working pressure. 7 year warranty against rust and corrosion.

SPECIFICATIONS
Brand PRINCE Mfg. Model Number B400300ABACA07B Type Double-Acting Bore x Stroke 4″ x 30″ Pressure 3000 PSI	Rod Dia. 1.75″ Column Load 22990 lbs. Ports SAE 8 Retracted Length 40.25″ Shpg. 93 lbs.
END MOUNTINGS
Rod End Clevis Outside Width 2.875″ Inside Width 1.06″ Throat Depth 1.875″ Pin Hole 1.00″	Base End Clevis Outside Width 2.6875″ Inside Width 1.06″ Throat Depth 1.75″ Pin Hole 1.00″
