Description

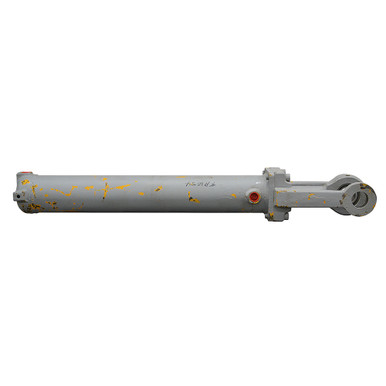

4″ x 24″ x 2″ HYD CYL
Unused old inventory. Welded, double acting hydraulic cylinder, model FA3054. Cylinder has bad wiper, sold as-is.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4″ x 24″
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 2″
- Rod Thickness 2″
|
- Extend Ports SAE 12 and SAE 4
- Retract Ports Two SAE 12
- Retracted Length Negative 0.625″
- Gland Face to Rod Pin Center 7.25″
- Shpg. 176 lbs.
|
| END MOUNTINGS |
|
- Rod End Swivel Eye
- Width 1.959″
- Pin-Center-To-Swivel Eye-End 2.538″
- Swivel Eye Width 1.75″
- Pin Hole 2″
|
- Base End Female Trunnion
- Pin Outside/Inside Width 9.5″ / 7.223″
- Pin-Center-To-Rod Pin Center Negative 0.625″
- Pin Center To Base End 43.5″
- Pin Hole 2″
|
