Description

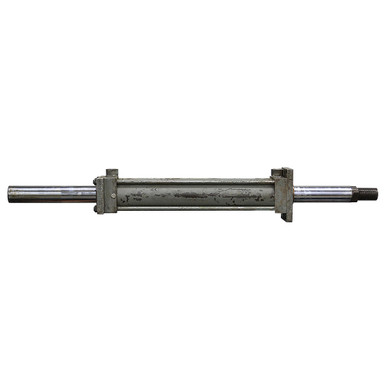

4″ x 20″ x 2.5″ DOUBLE ACTING DOUBLE ROD HYDRAULIC CYLINDER
Unused old inventory. Double acting double rod hydraulic cylinder. Numbers on cylinder 350313. (Cylinder has gouges and scratches on both ends of rod).
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4″ x 20″
- Barrel Thickness 0.305″
- Gland Retainer Bolt on gland
- Pressure 3000 PSI max.
- Rod Dia. 2.5″
|
- Ports 1″ NPT
- Retracted Length 53.5″
- Gland Face to Rod Pin Center 12.875″
- Shpg. 186 lbs.
|
| END MOUNTINGS |
- Rod End Threaded rod
- Thread Size-Pitch 1.875″-12
- Thread Length 2.75″
- Mounting Flange 7.625″ x 5″ x 1″ flange with four, 0.688″ bolt holes on on 6.29″ x 3.77″ bolt centers
|
- Base End Plane rod
- Mounting Flange 7.625″ x 5″ x 1″ flange with four, 0.688″ bolt holes on on 6.29″ x 3.77″ bolt centers
|
