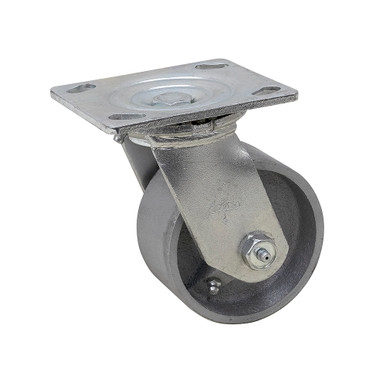

4″ x 2″ Swivel Steel Plate Caster WC6640-01-STL

Description

4″ X 2″ SWIVEL STEEL PLATE CASTER
Brand new, WC6640-01-STL steel wheel swivel plate caster. Case hardened double ball raceways provide extra capacity and durability. Top plate and legs are made out of 1/4″ cold forged steel and corrosion-resistant zinc plated finish. 5/8″ nut and bolt kingpin and 2-1/2″ for spacing with 1/2″ zerk axle and lock nut. Wheel made from premium cast iron or otherwise know as semi-steel. Resistant to abrasions or applications that may tear up soft tread wheels. Made for medium to high weight and extreme temperature applications.

SPECIFICATIONS

• Model WC6640R-01-STL
• Wheel Diameter 4″
• Wheel Width 2″
• Load Capacity 900 lbs.
• Mounting height 5-5/8″
• Top Plate 4″ x 4-1/2″ x 1/4″ thick
• Mount
    2-5/8″ x 3-5/8″ slotted to 3″ x 3″ centers
• Bolt Holes 3/8″
• Wheel Tread Material Cast Iron
• Wheel Tread Color Gray
• Wheel Tread Durometer 130-150 Brinell
• Wheel Core Material Cast iron
• Wheel Bearing Roller
• Wheel Temperature Rating -40ºF to 800ºF
• Shpg. 7 lbs.
