Description

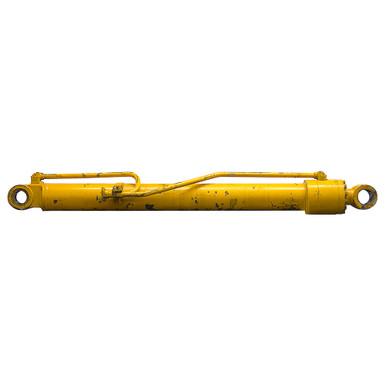

4.921″ (125mm) x 51.5″ x 3.346″ (85mm) DOUBLE ACTING HYDRAULIC CYLINDER
New, HYUNDAI model E131-0295 welded cylinder with bolt-in gland cap.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 125mm (4.921″) x 51-1/2″ (1308mm)
- Barrel Thickness 11.5mm (0.453″)
- Pressure 3000 PSI max.
- Rod Dia. 85mm (3.346″)
|
- Ports 3/4″ Four-Bolt Flange, Code 61
- Retracted Length 72″
- Shpg. 490 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Max Thickness 3-3/4″
- Pin Center to Tang End 2-3/4″
- Pin Hole 80mm (3.149″)
|
- Base End Tang
- Max Thickness 3-15/16″
- Pin Center to Tang End 2-3/4″
- Pin Hole 70mm (2.756″)
|
