Description
4.897″(125mm) x 35.04″(890mm) x 3.151″(80mm) HYD CYL

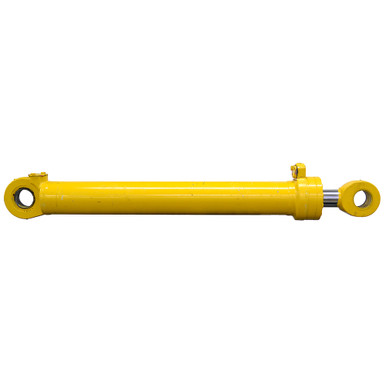

Unused old inventory. TEREX ATLAS 3071114, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.897″(125mm) x 35.04″(890mm)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 3.151″(80mm)
- Rod Thickness 3.151″(80mm)
|
- Ports CODE 62 FLANGE 16
- Retracted Length 58.75″
- Gland Face to Rod Pin Center 7.25″
- Shpg. 364 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 3.56″
- Pin-Center-To-Tang-End 3.13″
- Pin Hole 3.151″(80mm)
|
- Base End Swivel Eye
- Width 2.153″
- Pin-Center-To-Swivel Eye-End 3.758″
- Swivel Eye Width 2.158″
- Pin Hole 3.152″(80mm)
|
