Description
4.89″(125mm) x 47.25″(1200mm) x 3.54″(90mm) DA HYD CYL

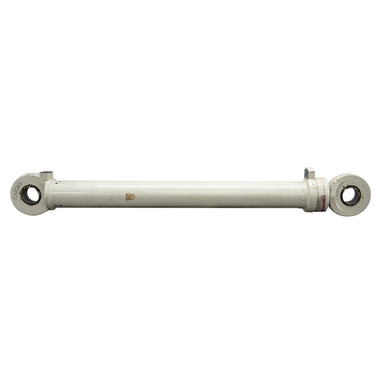

Unused old inventory. TEREX (ATLAS) double acting hydraulic cylinder. Numbers on cylinder 3195862.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke4.89″(125mm) x 47.25″(1200mm)
- Barrel Thickness 0.5″
- Gland Retainer Bolt on
- Pressure3000 PSI
- Rod Dia. 3.54″(90mm)
|
- Ports 4 bolt 1″ code 62 flange size 16
- Retracted Length70″
- Gland Face to Rod Pin Center 5.5″
- Shpg. 494 lbs.
|
| END MOUNTINGS |
|
- Rod End Swivel Eye
- Width 2.44″
- Pin-Center-To-Swivel Eye-End 4.84″
- Swivel Eye Width 2.63″
- Pin Hole 3.54″(90mm)
|
- Base End Swivel Eye
- Width 2.47″
- Pin-Center-To-Swivel Eye-End 4.77″
- Swivel Eye Width 2.63″
- Pin Hole 3.54″(90mm)
|
