4.74"(120mm)x49.78"(1265mm)x3.35"(85mm) Double Acting Hydraulic Cylinder 0752375UA

4.74″(120mm)x49.78″(1265mm)x3.35″(85mm) Double Acting Hydraulic Cylinder 0752375UA

Original price was: $399.95.Current price is: $79.99.

SKU: 904913 Category:

Description

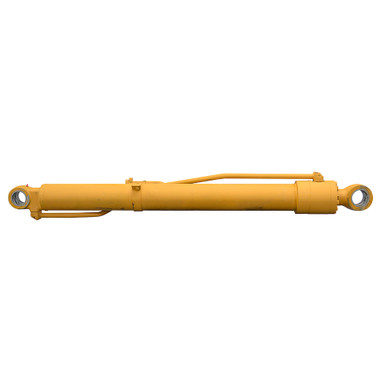

4.74″(120mm) x 49.78″(1265mm) x 3.35″(85mm)” DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 0752375UA.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.74″(120mm) x 49.78″(1265mm)
  • Barrel Thickness 0.409″
  • Gland Retainer Bolt on
  • Pressure 3000 PSI
  • Rod Dia. 3.35″(85mm)
  • Ports 4 bolt 3/4″ code 61 flange size 12
  • Retracted Length 69.75″
  • Gland Face to Rod Pin Center 5″
  • Shpg. 413lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.95″
  • Pin-Center-To-Tang-End 2.76″
  • Pin Hole 3.15″(80mm)
  • Base End Tang
  • Width 3.76″
  • Pin-Center-To-Tang-End 2.45″
  • Pin Hole 2.76″(70mm)
