Description

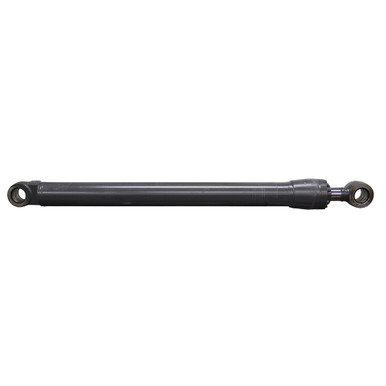

4.72″(120mm) x 53″(1346mm) x 3.15″(80mm) DA HYD CYL
Unused old inventory. VOLVO double acting hydraulic cylinder. Numbers on cylinder 1146-06650.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke4.72″(120m) x 53″(1346mm)
- Barrel Thickness 0.415″
- Gland Retainer Bolt on
- Pressure3000 PSI
- Rod Dia. 3.15″(80mm)
|
- Extend Port 4 bolt 1″ code 61 flange size 16
- Retract Port 4 bolt 3/4″ code 61 flange size 12
- Retracted Length77″
- Gland Face to Rod Pin Center 8.375″
- Shpg. 463 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 3.92″
- Pin-Center-To-Tang-End 2.99″
- Pin Hole 3.15″(80mm)
|
- Base End Tang
- Width 3.94″
- Pin-Center-To-Tang-End 2.81″
- Pin Hole3.15″(80mm)
|
