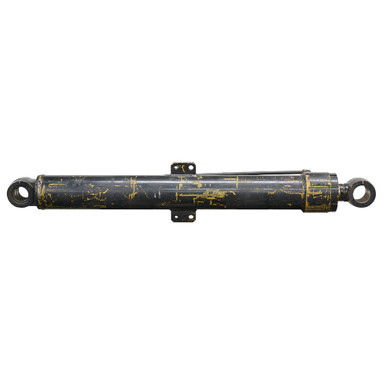

4.72"(120mm) x 35.04"(890mm) x 2.56"(65mm) Double Acting Hydraulic Cylinder

4.72″(120mm) x 35.04″(890mm) x 2.56″(65mm) Double Acting Hydraulic Cylinder

Original price was: $449.95.Current price is: $89.99.

SKU: 904858 Category:

Description

4.72″(120mm) x 35.04″(890mm) x 2.56″(65mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.72″(120mm) x 35.04″(890mm)
  • Barrel Thickness 0.22″
  • Gland Retainer Threaded in
  • Pressure 3000 PSI
  • Rod Dia. 2.56″(65mm)
  • Ports BSPT R3/8″-19
  • Retracted Length 50.5″
  • Gland Face to Rod Pin Center 3.625″
  • Shpg. 214 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.74″
  • Pin-Center-To-Tang-End 2.1″
  • Pin Hole 2.56″(65mm)
  • Base End Tang
  • Width 3.74″
  • Pin-Center-To-Tang-End 2.01″
  • Pin Hole 2.17″(55mm)
