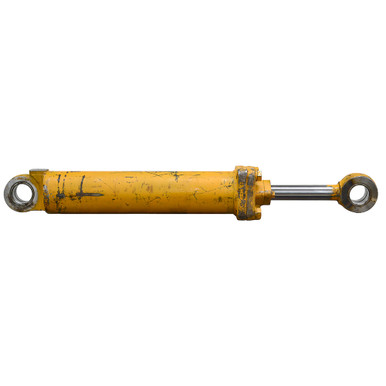

4.72"(120mm) x 19.69"(500mm) x 1.97"(50mm) Double Acting Hydraulic Cylinder

4.72″(120mm) x 19.69″(500mm) x 1.97″(50mm) Double Acting Hydraulic Cylinder

Original price was: $299.95.Current price is: $74.99.

SKU: 904856 Category:

Description

4.72″(120mm) x 19.69″(500mm) x 1.97″(50mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.72″(120mm) x 19.69″(500mm)
  • Barrel Thickness 0.311″
  • Gland Retainer Bolt on
  • Pressure 3000 PSI
  • Rod Dia. 1.97″(50mm)
  • Ports JIS 4 bolt M8-1.25 x 26mm on 1.695″(43mm) x 0.789″(20mm) centers w/ 0.574″(14.5mm) port hole
  • Retracted Length 41.56″
  • Gland Face to Rod Pin Center 11″
  • Shpg. 145 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 2.56″
  • Pin-Center-To-Tang-End 2.45″
  • Pin Hole 2.36″(60mm)
  • Base End Tang
  • Width 2.56″
  • Pin-Center-To-Tang-End 2.41″
  • Pin Hole 2.36″(60mm)
