Description

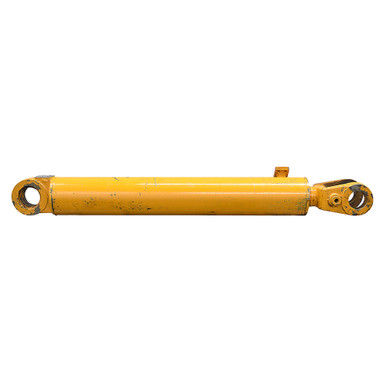

4.69″(120mm) x 28.5″(724mm) x 2.75″(70mm) DA HYD CYL
Unused old inventory. HYUNDAI double acting hydraulic cylinder. Numbers on cylinder 31L3-03990.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke4.69″(120mm) x 28.5″(724mm)
- Barrel Thickness 0.384″
- Gland Retainer Threaded in
- Pressure3000 PSI
- Rod Dia. 2.75″(70mm)
|
- Ports 4 bolt 1″ code 61 flange size 16
- Retracted Length45.75″
- Gland Face to Rod Pin Center 6.5″
- Shpg. 220 lbs.
|
| END MOUNTINGS |
|
- Rod End Clevis
- Outside Width 6.25″
- Inside Width 3.5″
- Throat Depth 5.63″
- Pin Hole 2.57″(65mm)
|
- Base End Tang
- Width 2.96″
- Pin-Center-To-Tang-End 2.59″
- Pin Hole 2.76″(70mm)
|
