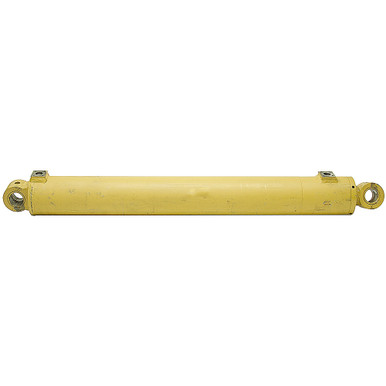

Name: 4.53"(115mm) x 35.5"(900mm) x 2.55"(65mm) Double Acting Hydraulic Cylinder
Brand: toolingsupplyoutlet.com
SKU: 902734
Price: 69.99 USD
Availability: InStock

4.53″(115mm) x 35.5″(900mm) x 2.55″(65mm) Double Acting Hydraulic Cylinder

SKU: 902734 Category: hot sale

Description

4.535″ (115 mm) x 35.5″ (900 mm) x 2.554″ (65 mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused, old inventory. Welded cylinder with thread-in gland retainer. Four bolt flange ports have 26 mm inside diameter port, four mounting holes on 32 mm x 37 mm centers tapped M8-1.25. “31148 3130 FG9” stamped in barrel..

SPECIFICATIONS
Double Acting Bore x Stroke 4.535″ (115 mm) x 35.5″ (900 mm) Barrel Thickness 0.455″ Pressure 3000 PSI max. Rod Dia. 2.554″ (65 mm) Rod Thickness Solid	Ports Four-bolt Flanges, see above Retracted Length 49″ Shpg. 220 lbs.
END MOUNTINGS
Rod End Tang Width, Max 2.76″ (70 mm) Pin Center To Tang End 1-7/8″ Pin Hole 1.895″ (48 mm)	Base End Tang Width, Max 2.76″ (70 mm) Pin Center To Tang End 1-7/8″ Pin Hole 1.895″ (48 mm)
