Description

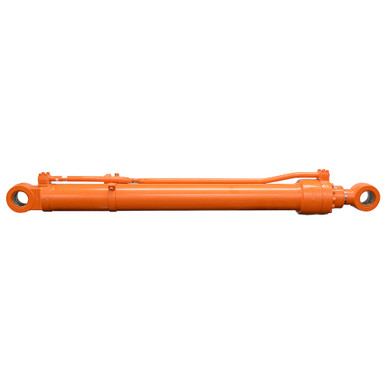

4.529″(115mm) x 47.062″(1195mm) x 3.152″(80mm) HYD CYL (LEFT HAND)
Unused old inventory. DOOSAN K1014801, welded, double acting hydraulic cylinder. Cylinder intended to be used as a pair (left hand).
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.529″(115mm) x 47.062″(1195mm)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 3.152″(80mm)
|
- Ports CODE 61 FLANGE 12
- Retracted Length 66.75″
- Gland Face to Rod Pin Center 4.75″
- Shpg. 367 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 3.42″
- Pin-Center-To-Tang-End 2.754″
- Pin Hole 2.758″(70mm)
|
- Base End Tang
- Width 3.421″
- Pin-Center-To-Tang-End 2.731″
- Pin Hole 2.758″(70mm)
|
