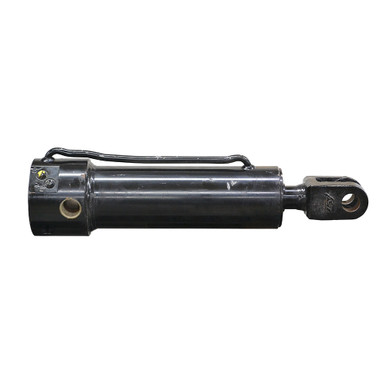

4.5″ x 9.063″ x 2″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. PMI 1684371 A, welded, double acting, hydraulic cylinder. Two DANFOSS POC1-10-F-0-030-M436 cartridge pilot operated check valves in base end.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.5″ x 9.063″
- Barrel Thickness 0.375″
- Gland Retainer Thread in
- Pressure 2500 PSI max.
- Rod Dia. 2″
- Rod Thickness 2″
|
- Ports SAE 6
- Retracted Length 22.75″
- Gland Face to Rod Pin Center 5.5″
- Shpg. 141 lbs.
|
| END MOUNTINGS |
- Rod End Clevis
- Outside Width 3.843″
- Inside Width 1.461″
- Throat Depth 4″
- Pin Hole 1.5″
|
- Base End Thru-Hole
- Width 6.5″
- Pin Center to Base End 3.375″
- Pin Hole 1.5″
|
