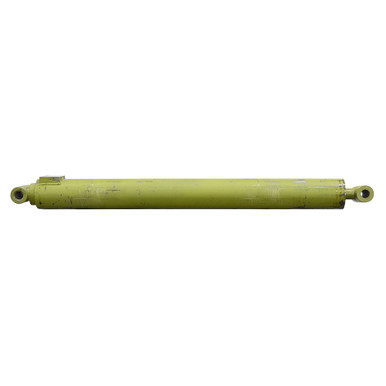

4.5" x 47.5" x 2" Double Acting Hydraulic Cylinder Mark Industries 189130381 23790

4.5″ x 47.5″ x 2″ Double Acting Hydraulic Cylinder Mark Industries 189130381 23790

Original price was: $399.95.Current price is: $79.99.

SKU: 902559 Category:

Description

4.5″ x 47.5″ x 2″ DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 189130381 23790

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 6″ x 47.5″
  • Barrel Thickness 0.515″
  • Gland Retainer Internal snap ring gland retainer
  • Pressure2500 PSI max.
  • Rod Dia.2″
  • Extend Port 4″ x 3-5/8″ manifold block flange with four 5/16-24 x 3/4″ bolt holes on 3.445″ x 2.75″ bolt centers
  • Retract Port SAE 6
  • Retracted Length60.75″
  • Gland Face to Rod Pin Center3.25″
  • Shpg. 245 lbs.
END MOUNTINGS
  • Rod End Cross-Tube
  • O.D. 3″
  • Width 5.875″
  • Pin Hole 1-1/2″
  • Base End Cross-Tube
  • O.D. 3″
  • Width 5.875″
  • Pin Hole 1-1/2″
