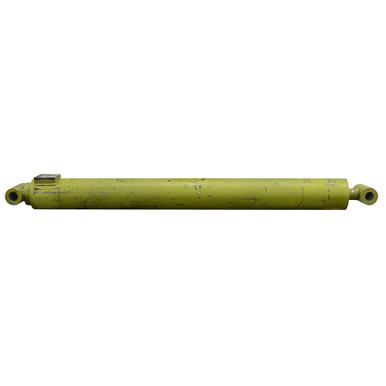

4.5" x 47.325" x 2" Double Acting Hydraulic Cylinder

4.5″ x 47.325″ x 2″ Double Acting Hydraulic Cylinder

Original price was: $399.95.Current price is: $79.99.

SKU: 904516 Category:

Description

4.5″ x 47.375″ x 2″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 189130381 23790 46026 12909.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.5″ x 47.375″
  • Barrel Thickness 0.494″
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI
  • Rod Dia. 2″
  • Extend Port 3.75″ x 4″ x 1″ manifold block with 5/16″-24 bolt holes and 0.515″ port hole
  • Retract Port SAE 6
  • Retracted Length 61.5″
  • Gland Face to Rod Pin Center 3.375″
  • Shpg. 245 lbs.
END MOUNTINGS
  • Rod End Cross-Tube
  • O.D. 3″
  • Width 5.875″
  • Pin Hole 1-1/2″
  • Base End Cross-Tube
  • O.D. 3″
  • Width 5.875″
  • Pin Hole 1-1/2″
