Description

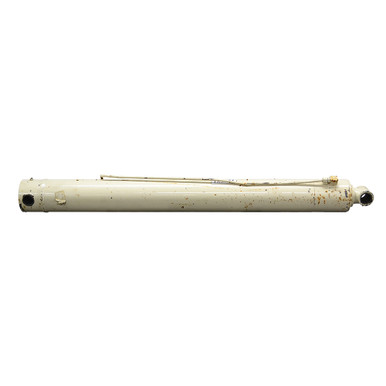

4.5″ x 40.375″ x 2.5″ HYDRAULIC CYLINDER
Unused old inventory. GROVE CRANE 123696, welded, double acting hydraulic cylinder. Cylinder has a SUN CBCA LHN 3500 psi cartridge valve in base end.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.5″ x 40.375″
- Gland Retainer Snap ring
- Pressure 2500 PSI max.
- Rod Dia. 2.5″
|
- Ports SAE 6
- Retracted Length 52.5″
- Gland Face to Rod Pin Center 1.875″
- Shpg. 220 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 3.181″
- Pin-Center-To-Tang-End 1.268″
- Pin Hole 1.5″
|
- Base End Thru-Hole
- Width 5.25″
- Pin Center to Base End 1.568″
- Pin Hole 1.5″
|
