Description

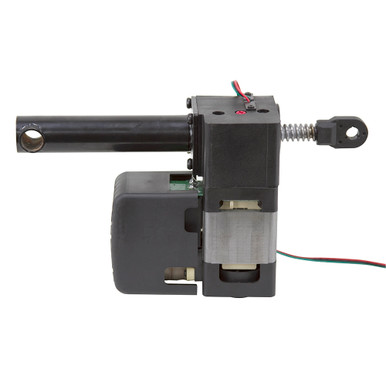

4.4375″ STROKE LINEAR ACTUATOR
New, capacitor-start, inducton-run linear actuator. Power extend and power retract. Hall effect sensor connected to internal gearing.
SPECIFICATIONS
- Voltage 120 Volt AC, 60 Hz
- Amperage 1.8 Amps
- Capacity Unknown
- Thread 9/16″ dia. Acme thread
- Stroke 4-7/16″
- Extension Speed 0.202″ / sec. (no load)
- Extension Time 22 seconds to Full Stroke, No Load
- Limit Switches No limit switches
- Direction Reversible
- Duty Intermittent (2 min ON, 20 min OFF)
- Retracted length 9-5/8″
- Rod end pin hole 5/8″
- Base end pin hole 3/8″
- Size 10.625″ x 6″ x 3.125″
- Shpg. 6 lbs.
