4.25" x 18" x 2" Double Acting Hydraulic Cylinder Taylor Machine Works 1-1-26-1503

4.25″ x 18″ x 2″ Double Acting Hydraulic Cylinder Taylor Machine Works 1-1-26-1503

Original price was: $189.95.Current price is: $47.49.

SKU: 904555 Category:

Description

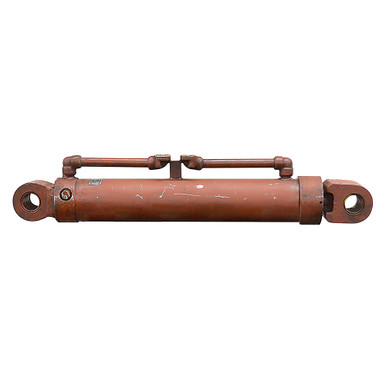

4.25″ x 18″ x 2″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Taylor Machine Works numbers on cylinder 1-1-26-1503.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.25″ x 18″
  • Barrel Thickness 0.322″
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI
  • Rod Dia. 2″
  • Ports 4 bolt 3/4″ code 61 flange size 12
  • Retracted Length 36″
  • Gland Face to Rod Pin Center 3.5″
  • Shpg. 180 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 3.8″
  • Pin-Center-To-Tang-End 2.14″
  • Pin Hole 2″
  • Base End Tang
  • Thickness, Max 2.8″
  • Pin-Center-To-Tang-End 2.06″
  • Pin Hole 2″
