Description

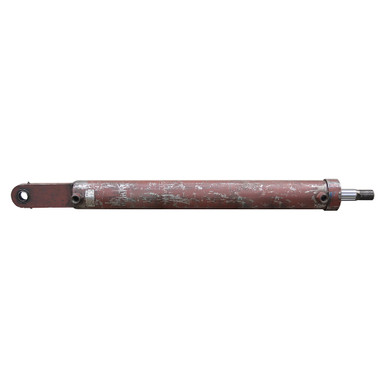

4.25″ x 17″ x 2″ HYD CYL
Unused old inventory. TAYLOR MACHINE WORKS 1-1-26-0688, welded, double acting hydraulic cylinder with interal stroke limiter. Rod seal leaks by, sold as-is.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.25″ x 17″
- Gland Retainer Externally threaded
- Pressure 2500 PSI max.
- Rod Dia. 2″
- Rod Thickness 2″
|
- Ports 3/8″ NPT
- Retracted Length 57.5″
- Gland Face to Rod Pin Center 6.25″
- Shpg. 160 lbs.
|
| END MOUNTINGS |
|
- Rod End Threaded
- Thread size-Pitch 1-3/4″-12 TPI
- Thread Length 2.375″
|
- Base End Swivel Eye
- Width 1.281″
- Pin-Center-To-Swivel Eye-End 2.049″
- Swivel Eye Width 1.375″
- Pin Hole 1.5″
|
