Sale!

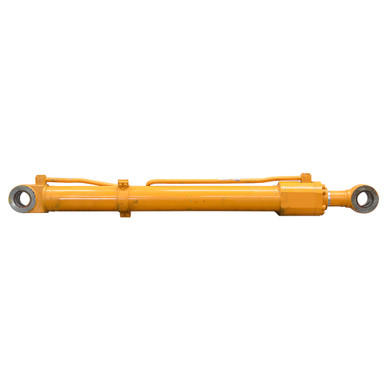

4.13"(105mm) x 42.375"(1076mm) x 2.95"(75mm) Double Acting Hydraulic Cylinder Hyundai 31E6-50110

4.13″(105mm) x 42.375″(1076mm) x 2.95″(75mm) Double Acting Hydraulic Cylinder Hyundai 31E6-50110

Original price was: $399.95.Current price is: $79.99.

SKU: 904677 Category:

Description

4.13″(105mm) x 42.375″(1076mm) x 2.95″(75mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. HYUNDAI double acting hydraulic cylinder. Numbers on cylinder 31E6-50110.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.13″(105mm) x 42.375″(1076mm)
  • Barrel Thickness 0.344″
  • Gland Retainer Bolt on
  • Pressure 3000 PSI
  • Rod Dia. 2.95″(75mm)
  • Ports BSPP 8
  • Retracted Length 63.625″
  • Gland Face to Rod Pin Center 6.875″
  • Shpg. 322 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.52″
  • Pin-Center-To-Tang-End 2.625″
  • Pin Hole 2.76″(70mm)
  • Base End Tang
  • Width 3.52″
  • Pin-Center-To-Tang-End 2.65″
  • Pin Hole 2.76″(70mm)
