Description

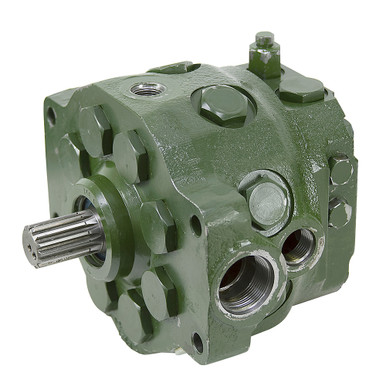

4.0 cu in RELIANCE JOHN DEERE HYDRAULIC PUMP
Brand New, RELIANCE model NAR946610 replacement pressure compensated radial piston pump for use with many models of John Deere farm tractors and industrial equipment. See chart below for equipment models. Replaces part numbers AR94661, AR99839, AR73106, AR70722, AR46246. Pump is 100 percent all new parts and have been run on test bench to check pressures and functionality.
SPECIFICATIONS
- Brand Reliance
- Model Number NAR946610
- Disp. 4.0 cu. in. / rev.
- Pump Type Radial Piston
- Rotation CCW
- Pressure 2350 PSI
- Flow 30 GPM at 1750 RPM
- Mount 4 bolt
- Shaft 1-1/4″ dia. 14T spline
- Inlet Port SAE 12
- Inlet/Return Port SAE 12
- Outlet Port SAE 12
- Drain Port SAE 3
- Size 6.25″ x 10″ x 8″
- Shpg. 74 lbs.
| This hydraulic pump can be found in the following equipment applications: | |
| Tractor with MFWD | 4000, 4020, 4040, 4230, 4240, 4320, 4430, 4440, 4520, 4620, 4630, 4640 |
| 4Wd Tractor | 8430, 8440, 8450, 8630, 8640, 8650 |
| Farm Tractor: | 4555,4650,4850,4955 |
