Description

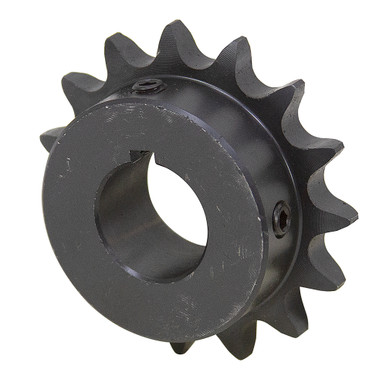

50 PITCH ANSI ROLLER CHAIN SPROCKET
New.ANSI standard 50 pitch roller chain sprocket.Bored to size.One-piece carbon steel forged construction with hardened teeth and black oxide finish.Two set screws.Set screws are located directly over the keyway and 90° from keyway.Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch 50
- Number of Teeth 34
- Bore Size 1-3/8″
- Model Number 50BS34H-1-3/8
- Outside Diameter 7.12″
- Hub Diameter 3-1/4″
- Hub Type B (Hub on one side)
- Length Through Bore 1-1/4″
- Keyway Size 5/16″ wide x 5/32″ depth
- Shpg. 6 lbs.
