Description

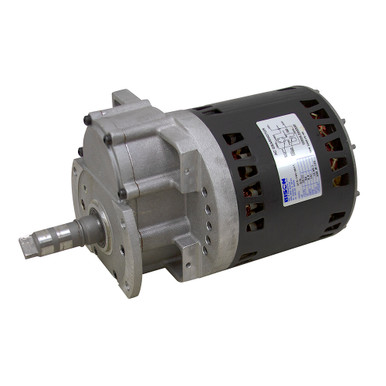

131 RPM 208-230 VOLT AC BISON 015-790-0011 GEARMOTOR
New, BISON, model 015-790-0011. Inline permanent magnet gearmotor. Requires 270-324 MFD start capacitor and 189605-13 solid state switch not included.
SPECIFICATIONS
- Brand Bison
- Model Number 015-790-0011
- Speed 131 RPM
- Voltage 208-230 AC
- Amperage 5
- Power 5/8 HP
- Torque 280 in.lbs.
- Gear Ratio 10.8:1
- Rotation Reversible
- Duty Continuous
- Enclosure TE
- Gearbox Face Mount 4 holes 0.410″ x 0.375″ depth 2-3/4″ x 4-3/4″ centers
- Motor Mount 4 tapped holes 1/4″-20 TPI, two on each side of motor on 4″ centers
- Shaft 1″ dia. x 3-1/16″ w/ tang 0.887″ x 0.371″ x 0.493″ on end of shaft and 0.108″ wide groove 2.443″ from end of shaft to center of groove
- Size 12.5″ x 6.25″ x 7.25″
- Shpg. 40 lbs.
