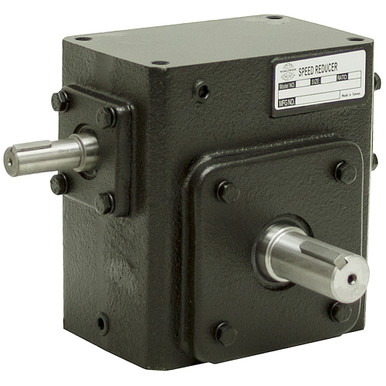

30:1 RIGHT ANGLE WORM GEAR REDUCER
Brand new, WorldWide Electric right-angle worm gear reducer. Cast iron housing. Interior oil channel directly guides and constantly lube bearings. Embedded double-lip oil seals. Tapered roller bearings on output and input shafts. Double bearings used on both shafts. A set of four tapped mounting holes on top and bottom of housing. Shipped filled with Mobil SHC632 synthetic oil for the “A” position.(Refer to installation and maintenance manual for oil capacity for different mounting positions)
SPECIFICATIONS
- Brand WorldWide Electric
- Model Number HDRS-206-30-R
- Box Size 206 (2.06″ Center of Input Shaft to Center of Output Shaft)
- Ratio 30:1
- Input Speed 1750 RPM max.
- Output Speed 58 RPM max.
- Mechanical HP (1.0 SF) Ratings
Input HP 1.65 HP
Output Torque 1310 in-lb.
Output HP 1.21 HP - Thermal Capacity Ratings
Input HP 0.76 HP
Output Torque 606 in-lb.
Output HP 0.56 HP - Efficiency 73%
- Overhung Load 700 lbs.
- Output Shaft Thrust Load 750 lbs.
- Output Centerline Height 2.281″
- Input Shaft 5/8″ dia. x 1-9/16″ keyed
- Output Type Right Hand Shaft
- Output Shaft 1″ dia. x 2-3/32″ keyed
- Mount Two sets of four 3/8″-16 tapped holes on 5″ x 2-7/8″ centers
- Size 7-1/8″ x 5-3/16″ x 6-3/8″
- Shpg. 28 lbs.
