Description

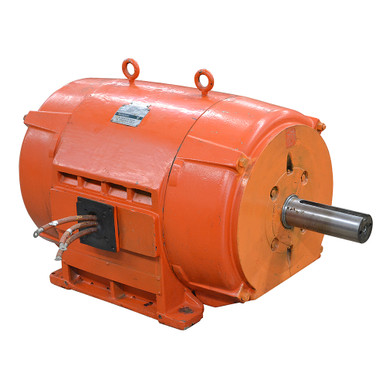

300 HP 1783 RPM 2300 VOLT AC 3 PHASE WESTINGHOUSE ELECTRIC MOTOR
Removed from service, Westinghouse model 2-17S7418.
SPECIFICATIONS
- Brand Westinghouse
- Model Number 2-17S7418
- Power 300 HP
- Voltage 2300 Volt AC
- Phase 3
- Frequency 60 Hz
- Amperage 68.1 Amps
- Speed 1783 RPM
- Rotation Reversible
- Service Factor 1
- Bearings Ball
- Duty Continuous
- Frame A506U
- Base Mount
- Shaft 3-3/8″ dia. x 9-1/2″ overall length w/ 7/8″ wide keyway
- Size 36″ x 31.25″ x 24.5″
- Shpg. 2145 lbs.
