Description

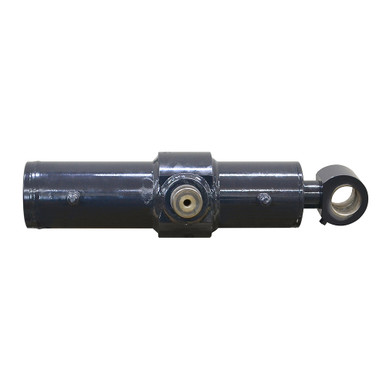

3″ x 8.75″ x 1.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic cylinder. 6817561 stamped in body of cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3″ x 8.75″
- Barrel Thickness 0.25″
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 1.5″
|
- Ports JIC 6
- Retracted Length 8.25″
- Gland Face to Rod Pin Center 2.25″
- Shpg. 35 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 2.102″
- Pin-Center-To-Tang-End 1.165″
- Pin Hole 1.5″
|
- Base End Male Trunnion
- Pin Outside/Inside Width 7.25″ / 4.75″
- Pin-Center-To-Rod Pin Center 8.25″
- Pin Center To Base End 8″
- Pin Diamter 1.5″
|
