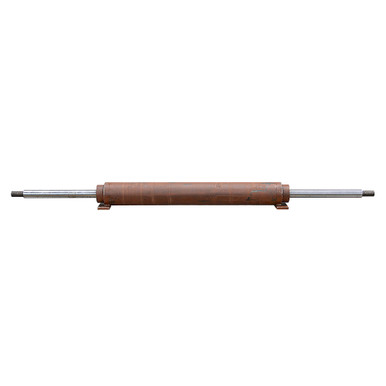

3" x 22.125" x 1.25" Double Acting Hydraulic Cylinder

3″ x 22.125″ x 1.25″ Double Acting Hydraulic Cylinder

Original price was: $89.95.Current price is: $26.99.

SKU: 904531 Category:

Description

3″ x 22.125″ x 1.25″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3″ x 22.125″
  • Barrel Thickness 0.257″
  • Gland Retainer Wire ring gland retainer
  • Pressure 2500 PSI
  • Rod Dia. 1.25″
  • Ports 3/8″ NPT
  • Retracted Length 55.375″
  • Gland Face to Rod Pin Center 13.125″
  • Shpg. 53 lbs.
END MOUNTINGS
  • Rod End Threaded
  • Thread Size-Pitch 7/8″-14
  • Thread Length1-3/4″
  • Base End Threaded
  • Thread Size-Pitch 7/8″-14
  • Thread Length 1-3/4″
  • Foot Mount
  • Dimensions 0.413″ bolt holes on 27.5″ x 13.125″ bolt centers
