Description

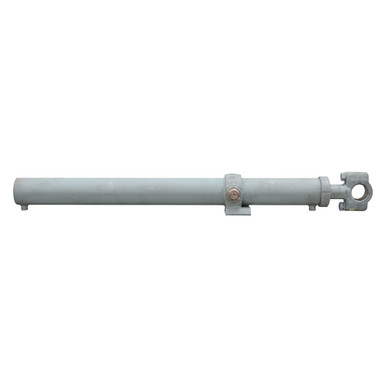

3.98″(101mm) x 46.25″(1175mm) x 2.49″(63mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. VOLVO double acting hydraulic cylinder. Numbers on cylinder 59937.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.98″(101mm) x 46.25″(1175mm)
- Barrel Thickness 0.25″
- Gland Retainer Externally threaded
- Pressure 3000 PSI
- Rod Dia. 2.49″(63mm)
|
- Ports SAE 8
- Retracted Length 21″
- Gland Face to Rod Pin Center 5.25″
- Shpg. 198 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Ball Receiver
- Ball Width 2″
- Ball O.D. 2.125″
|
- Base End Male Trunnion
- Pin Outside/Inside Width 8.5″ / 7.15″
- Pin-Center-To-Rod Pin Center 21″
- Pin Center To Base End 35.875″
- Pin Hole 1.57″(40mm)
|
