3.94"(100mm) x 17.75"(451mm) x 1.97"(50mm) Double Acting Hydraulic Cylinder AT254727

3.94″(100mm) x 17.75″(451mm) x 1.97″(50mm) Double Acting Hydraulic Cylinder AT254727

Original price was: $189.95.Current price is: $47.49.

SKU: 904812 Category:

Description

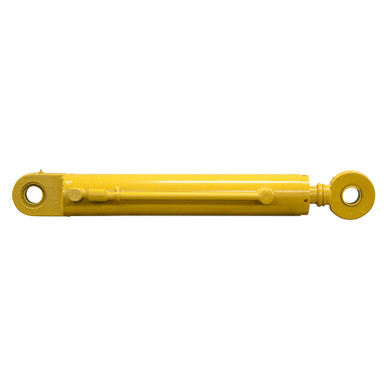

3.94″(100mm) x 17.75″(451mm) x 1.97″(50mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder AT254727.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3.94″(100mm) x 17.75″(451)
  • Barrel Thickness 0.409″
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI
  • Rod Dia. 1.97″(50mm)
  • Ports 1/2″ NPT
  • Retracted Length 35.75″
  • Gland Face to Rod Pin Center 4.875″
  • Shpg. 137 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Width 1.25″
  • Pin-Center-To-Tang-End 2.74″
  • Swivel Eye Width 1.375″
  • Pin Hole 1.97″(50mm)
  • Base End Swivel Eye
  • Width 1.55″
  • Pin-Center-To-Tang-End 2.40″
  • Swivel Eye Width 1.375″
  • Pin Hole 1.97″(50mm)
