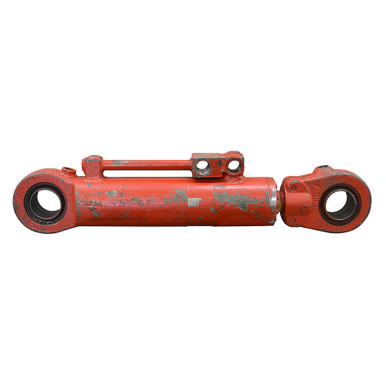

3.89"(100mm) x 9.25"(235mm) x 2.16"(55mm) Double Acting Hydraulic Cylinder Orenstein and Koppel

3.89″(100mm) x 9.25″(235mm) x 2.16″(55mm) Double Acting Hydraulic Cylinder Orenstein and Koppel

Original price was: $49.95.Current price is: $14.99.

SKU: 904940 Category:

Description

3.89″(100mm) x 9.25″(235mm) x 2.16″(55mm) DA HYD CYL
Unused old inventory. ORENSTEIN and KOPPEL double acting hydraulic cylinder. Piston seals leak by.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke3.89″(100mm) x 9.25″(235mm)
  • Barrel Thickness 0.419″
  • Gland Retainer Bolt on
  • Pressure3000 PSI
  • Rod Dia. 2.16″(55mm)
  • Ports 1″ NPT
  • Retracted Length28″
  • Gland Face to Rod Pin Center 6.25″
  • Shpg. 122 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Width 2.4″
  • Pin-Center-To-Swivel Eye-End 3.1″
  • Swivel Eye Width 2.625″
  • Pin Hole 2.78″(70mm)
  • Base End Swivel Eye
  • Width 2.37″
  • Pin-Center-To-Swivel Eye-End 3.22″
  • Swivel Eye Width 2.625″
  • Pin Hole 2.78″(70mm)
