Description

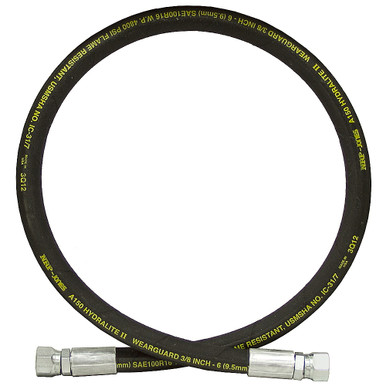

3/8″ X 300″ JIC 8F X JIC 8F 5000 PSI HYD HOSE
Brand new, two-wire braided SAE 100R16 hydraulic hose assembly. Assembled in USA from NRP JONES hose stock and USA-made plated steel fittings. Oil and abrasion resistant Wearguard® neoprene jacket, MSHA approved. Oil resistant nitrile tube. Length measured from end to end.
SPECIFICATIONS
- Hose Type SAE 100R16 HydraLite II, Two-Wire Braided
- Overall Length 300″
- Inside Hose Diameter 3/8″
- Outside Jacket Diameter 0.72″
- Fittings JIC 8F, Swivel
- Minimum Bend Radius 2.50″
- Temperature Range -40° to 250°F
- Working Pressure 5000 PSI
- Burst Pressure 19200 PSI
- Shpg. 9.9 lbs.
| 3/8″ Two Wire Hydraulic Hose Clamp A2-18H-A | 902265 |
| 3/8″ Two Wire Dual Hydraulic Hose Clamp AT2-18H-A | 902279 |
