Description

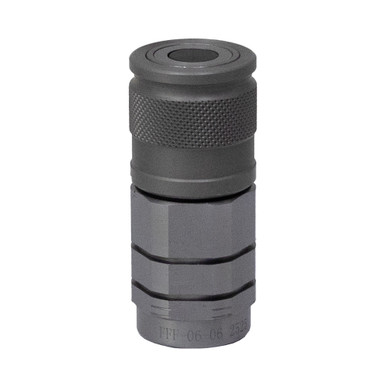

3/8″ NPT FLUSH FACE QUICK COUPLER BODY ISO 16028
Brand new, Horizon KSP1 series flush face quick coupler body only. Flush face design is easily cleaned, minimizes oil spillage during disconnection and minimizes air inclusion during connection. One-handed, push-to-connect convenience. Commonly used on many models of skid-steer loaders and construction and agricultural equipment. Plated steel construction with nitrile NBR seals and Teflon backup ring.
Interchangeable with Parker FEM, Faster FF, Homburg Series A and other brands of quick couplings that conform to International Standard ISO 16028 dimensional requirements.
SPECIFICATIONS
- Brand Horizon
- Model Number FFF-06-06
- ISO Standard 16028
- ISO Body Size 3/8″
- Port 3/8″ NPT
- Pressure, Working 3000 PSI Max
- Pressure, Burst 12000 PSI
- Flow 6.07 GPM Max
- Temperature Range -25° C to 125° C
- Oil Spillage (at disconnect) 0.012 cc
- Coupler O.D. 2-9/32″
- Length 2-15/16″
- Shpg. 0.7 lbs.
Tip for body
| 3/8″NPT Flush Face Quick Coupler Tip ISO 16028 Horizon FFM-06-06 |
904351 |
Dust plug for body
| Dust Plug For 3/8″ Flush Face Coupler Body Horizon FFF06 PLUG |
904745 |
Complete coupler
| 3/8″ NPT Flush Face Quick Coupler Set Horizon KSP1 series |
907085 |
