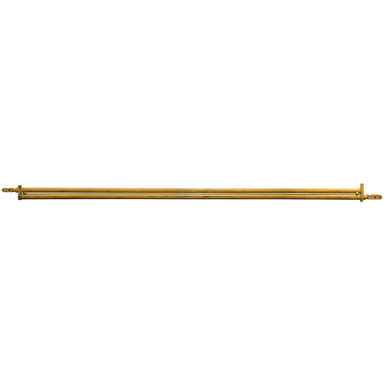

93.75″/3″ x 260″ x 3″/2.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting TANDEM hydraulic cylinder. Large cylinder has mouting flange for manifold in rod end with 3/4″ extend port and 1/2″ retract port with four 1/4″-20 x 7/8″ bolt holes on 3-1/4″ x 3″ centers. Model 61530 06 0011 (3.75″ CYL) & 61530 04 8034 (3″ CYL)
| SPECIFICATIONS |
- Double Acting
- Gland Retainer Threaded In Gland
- Pressure 3000 PSI max.
|
- Ports SAE 8
- Retracted Length 304″
- Shpg. 1092 lbs.
|
| CYLINDER ONE |
|
- Bore x Stroke 3.75″ x 260″
- Barrel Thickness 0.25″
- Rod Dia. 3″
- Hollow Rod, Thickness 0.369″
|
| END MOUNTINGS |
- Rod End Clevis
- Outside Width 5.75″
- Inside Width 2.75″
- Throat Depth 3.95″
- Pin Hole 1-1/4″
- Rod End Thru-Hole
- Width 5.625″
- Pin Center to Base End 5.465″
- Pin Hole 1-1/4″
|
|
| CYLINDER TWO |
|
- Bore x Stroke 3″ x 260″
- Barrel Thickness 0.25″
- Rod Dia. 2.5″
- Hollow Rod, Thickness 0.25″
|
| END MOUNTINGS |
- Rod End Clevis
- Outside Width 5.625″
- Inside Width 2.625″
- Throat Depth 4.456″
- Pin Hole 1-1/4″
- Rod End Thru-Hole
- Width 5.625″
- Pin Center to Base End 5.463″
- Pin Hole 1-1/4″
|
|
