Description

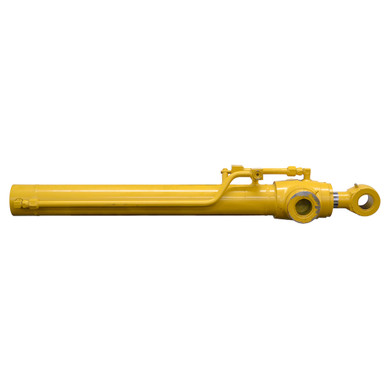

3.712″ (95mm) x 32.813″ (834mm) x 2.363″ (60mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic cylinder. AP36003 on crate.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.712″ (95mm) x 32.813″ (834mm)
- Barrel Thickness 8mm
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 2.363″ (60mm)
|
- Ports BSPP 1/2″
- Retracted Length 9.25″
- Gland Face to Rod Pin Center 4.75″
- Shpg. 214 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 2.760″
- Pin-Center-To-Tang-End 2.179″
- Pin Hole 2.168″ (55mm)
|
- Base End Female Trunnion
- Pin Outside/Inside Width 9.75″ / 5.25″
- Pin-Center-To-Rod Pin Center 9.25″
- Pin Center To Base End 39.5″
- Pin Diamter 2.363″ (60mm)
- Pin Hole 2.363″ (60mm)
|
