Description

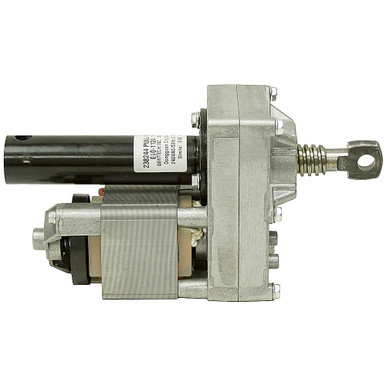

3.56″ STROKE 900LB PULL 120 VAC LINEAR ACTUATOR
New, Gentech Inc. model 238244 PULL-15R 900LB linear actuator. Power extend and power retract. Rated to pull up to 900 pounds, extend under no load. Shaded pole motor with open construction and external fan. Hall-effect sensor connected to internal gearing allows for use with position-sensing circuits.
SPECIFICATIONS
- Stroke 3.56″
- Voltage 240 VAC, 50 Hz
- Amperage 0.7 Amps
- Push/Pull Rating
- Dynamic Rated to Pull 900 lb.
- Extension Speed
- No Load 0.09 in./sec.
- RPM 27 RPM
- Thread 3/4″-6 Acme Thread
- Limit Switches No Limit Switches
- Direction Reversible
- Duty Intermittent
- Retracted length 6-3/4″
- Pin Holes 3/8″
- Size 7-1/2″ x 4-1/4″ x 3-1/8″
- Shpg. 6 lbs.
