Description

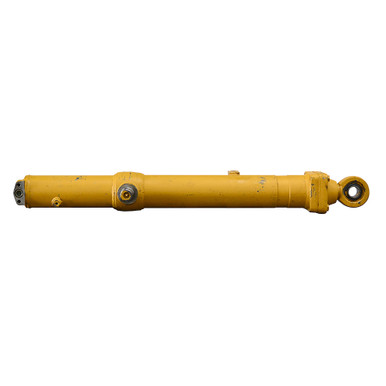

3.53″(90mm) x 35″(890mm) x 1.97″(50mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. FIAT-ALLIS double acting hydraulic cylinder. Numbers on cylinder 8293995.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.53″(90mm) x 35″(390mm)
- Barrel Thickness 0.491″
- Gland Retainer Bolt on
- Pressure 3000 PSI
- Rod Dia. 1.97″(50mm)
|
- Ports Two bolt flange M12-1.75 tapped bolt holes on 2.207″ centers w/ 0.789″ port hole and 1.205″ dia. recess
- Retracted Length 30.5″ (trunnion)
- Gland Face to Rod Pin Center 2.375″
- Shpg. 143 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Width 1.59″
- Pin-Center-To-Swivel Eye-End 2.17″
- Swivel Eye Width 1.53″
- Pin Hole 1.38″(35mm)
|
- Base End Male Trunnion
- Pin Outside/Inside Width 8.625″ / 5.5″
- Pin-Center-To-Rod Pin Center 30.5″
- Pin Center To Base End 15″
- Pin Dia. 1.58″(40mm)
|
