Description

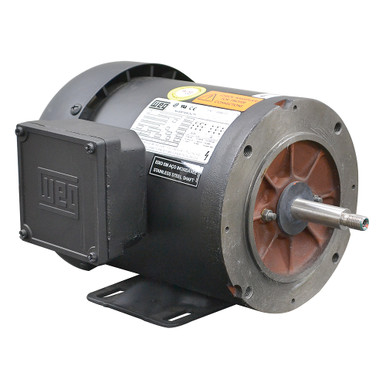

3/4 HP 3460 RPM MOTOR
New, WEG electric motor model TE01C040J0000101862 and inverter duty.
SPECIFICATIONS
- Power 3/4 HP
- Voltage 208-230/460 AC
- Phase 3
- Frequency 60 Hz
- Amperage 2.5-2.3/1.15 Amps
- Speed 3460 RPM
- Rotation CCW
- Service Factor 1.15
- Enclosure TEFC
- Duty Continuous
- Frame B56J
- Face Mount
Four 3/8″-16 tapped holes on
5-7/8″ diameter bolt circle - Rigid Base Mount
Four 0.34″ dia. holes on 4-7/8″ x 3″ - Shaft 5/8″ dia. x 1-3/4″ smooth w/ 7/16″-20 thread 11/16″ long
- Size 12-1/2″ x 8-5/8″ x 7″
- Shpg. 27 lbs.
