Description

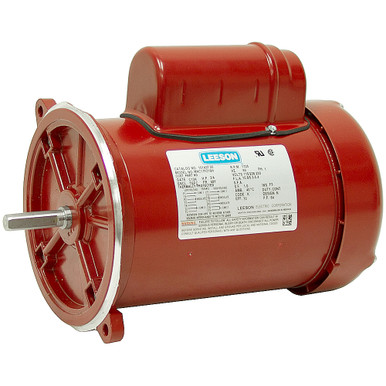

3/4 HP 1725 RPM 115/230 VOLT AC AUGER MOTOR
New, Leeson model M4C17FZ18H electric motor. Replacement poultry feed auger motor. Fully gasketed to keep dust out. Capacitor start motor. Mechanical centrifugal starting switch with overspeed protection. Steel construction. Manual overload protection.
SPECIFICATIONS
- Brand Leeson
- Model Number M4C17FZ18H
- Catalog Number 117889.00
- Power 3/4 HP
- Voltage 115/208-230 Volt AC
- Amperage 10.8/5.3-5.4 Amps
- Speed 1800 RPM
- Rotation Reversible
- Phase 1
- Service Factor 1.0
- Bearings Ball
- Enclosure TEFC
- Duty Continuous
- Frame 48Y
- Face Mount Two 0.343 dia. holes on 7-1/4″ B.C.
- Shaft 1/2″ dia. x 1-1/2″ w/ Flat
- Size 9.5″ x 8.75 x 8.31″
- Shpg. 29 lbs.
