Description
12-28 VDC AXIAL FAN

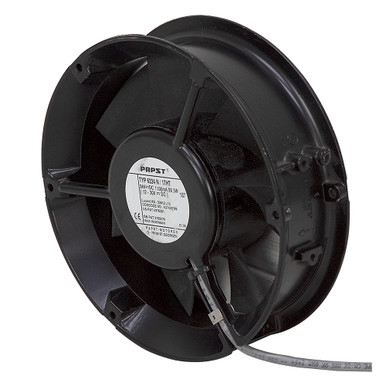

New, PAPST type 6224N/17HT axial fan. Ball bearings. Metal housing with plastic impellor. 12″ cord with 5 pin connector plug. Air discharges on motor support side.
SPECIFICATIONS
- Air Flow 282.5 CFM max
- Voltage (rated) 24 VDC, useable on 12-28 VDC
- Amperage 1.1 Amps
- Power 26 Watts
- Sound Level 61 dB
- Mount 4 thru-holes
- Blade 5-5/8″ dia.
- Number of blades 7
- Size 6-3/4″ dia. x 2″
- Shpg. 3 lbs.
