Description

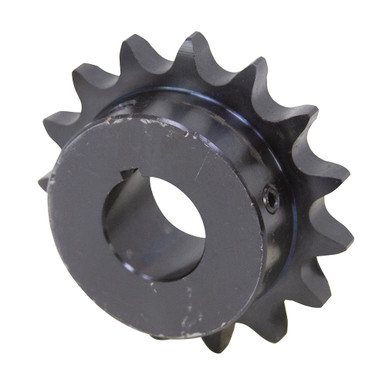

60 PITCH ANSI ROLLER CHAIN SPROCKET
Brand new. ANSI standard 60 pitch roller chain sprocket. Bored to size. One-piece carbon steel forged construction with hardened teeth and black oxide finish. Two set screws. Set screws are located directly over the keyway and 90° from keyway. Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch 60
- Number of Teeth 24
- Bore Size 1-1/4″
- Model Number 60BS24H-1-1/4
- Outside Diameter 6.15″
- Hub Diameter 4″
- Hub Type B (Hub on one side)
- Length Through Bore 1-1/4″
- Keyway Size 1/4″ wide x 1/8″ depth
- Shpg. 5.3 lbs.
