Description

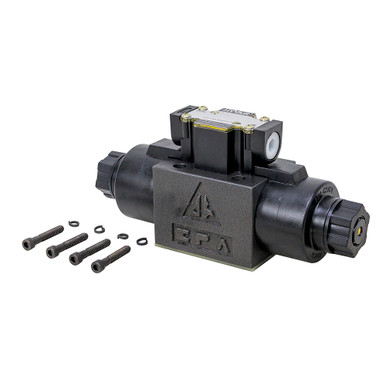

230 VOLT AC HYDRAULIC DOUBLE SOLENOID VALVE
New Hyvair D05S-2C-230A-35 230 volt AC, electrical box type with indicator lights, 3 position spring center, double solenoid hydraulic valve. Ports A & B blocked in neutral, P to T open in neutral. Four 1/4″-20 x 1-1/2″ socket head screws included for mounting.
SPECIFICATIONS
- Brand Hyvair
- Model Number D05S-2C-230A-35
- Series 35
- Open Center
- Voltage 230 Volt AC
- Starting Current 2.7 Amps @ 50 Hz, 2.5 Amps @ 60 Hz
- Holding Current 0.52 Amps @ 50 Hz, 0.48 Amps @ 60 Hz
- Holding Power 36 W @ 50 Hz, 32 W @ 60 Hz
- Flow 18.5 GPM
- Pressure 3600 PSI
- Mounting D05 Subplate
- Size 9-1/4″ x 3″ x 4-1/4″
- Shpg 13 lbs.
