Description

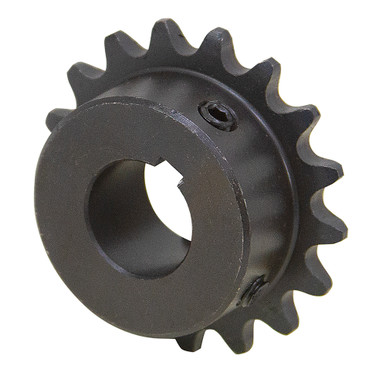

35 PITCH ANSI ROLLER CHAIN SPROCKET
Brand new.ANSI standard 35 pitch roller chain sprocket.Bored to size.One-piece carbon steel forged construction with hardened teeth and black oxide finish.Two set screws.Set screws are located directly over the keyway and 90° from keyway.Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch 35
- Number of Teeth 23
- Bore Size 1″
- Model Number 35BS23H-7/8
- Outside Diameter 2.95″
- Hub Diameter 2″
- Hub Type B (Hub on one side)
- Length Through Bore 7/8″
- Keyway Size 1/4″ wide x 1/8″ depth
- Shpg. 1 lbs.
