Description

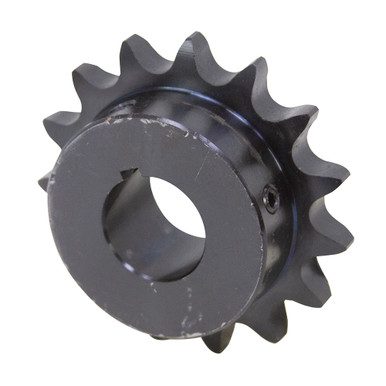

60 PITCH ANSI ROLLER CHAIN SPROCKET
New. ANSI standard 60 pitch roller chain sprocket. Bored to size. One-piece carbon steel forged construction with hardened teeth and black oxide finish. Two set screws. Set screws are located directly over the keyway and 90° from keyway. Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch 60
- Number of Teeth 23
- Bore Size 1-7/8″
- Model Number 60BS23H-1-7/8
- Outside Diameter 5.91″
- Hub Diameter 4″
- Hub Type B (Hub on one side)
- Length Through Bore 1-1/4″
- Keyway Size 1/2″ wide x 1/4″ depth
- Shpg. 6 lbs.
