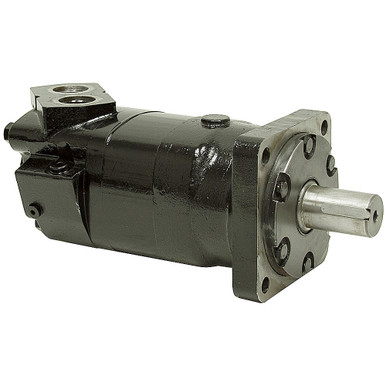

23.87 cu in Dynamic BMK6-400-CC-G2-SF5 Hydraulic Motor

Description

23.87 cu in HYD MOTOR

Brand new, DYNAMIC BMK6 series hydraulic motor. Heavy duty with high flow capacity. ROLORTORC power element. Tapered roller bearings on output shaft for high axial and radial load capacity. Interchangeable with CHARLYNN 6000 motors.

SPECIFICATIONS

• Brand Dynamic
• Model 61763
• Build Number BMK6-400-CC-G2-SF5
• Disp. 23.87 cu.in./rev.
• Pressure
  2900 PSI (Cont.)
  4350 PSI (Int.)
• Torque
  10266 in-lb. (Cont.)
  14382 in-lb. (Int.)
• Speed
  382 RPM (Cont.)
  570 RPM (Int.)
• Flow
  39.6 GPM (Cont.)
  59.4 GPM (Int.)
• Rotation Reversible
• Mount 4 bolt SAE C
  6.375 bolt circle, 5″ pilot dia.
• Shaft 1-1/2″ dia. x 3.01″ shaft with 3/8″ key tapped 3/8-16
• Ports SAE 16
• Case Drain SAE 4
• Size 11.3″ x 5.75″ x 5.75″
• Shpg. 65 lbs.
