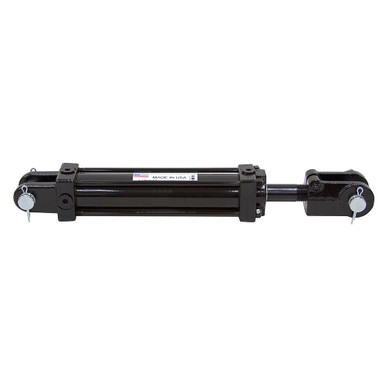

Name: 2" x 4" x 1.125" Double Acting Hydraulic Cylinder Prince F200040ABAAA07B
Brand: toolingsupplyoutlet.com
SKU: 905175
Price: 60.59 USD
Availability: InStock

2″ x 4″ x 1.125″ Double Acting Hydraulic Cylinder Prince F200040ABAAA07B

SKU: 905175 Category: hot sale

Description

PRINCE DOUBLE ACTING TIE-ROD CYLINDER
Brand new, PRINCE tie-rod hydraulic cylinder. Premium quality with superior materials and workmanship. Chrome rod, high quality seals and steel components. Aircraft quality two-part polyester urethane paint.

SPECIFICATIONS
Brand PRINCE Model Number F200040ABAAA07B Type Double-Acting Bore x Stroke 2″ x 4″ Pressure 3000 PSI	Rod Dia. 1.125″ Column Load 9425 lbs. Ports SAE 8 Retracted Length 14.25″ Shpg. 24 lbs.
END MOUNTINGS
Rod End Clevis Outside Width 2.50″ Inside Width 1.06″ Throat Depth 1.8125″ Pin Hole 1.00″	Base End Clevis Outside Width 2.375″ Inside Width 1.06″ Throat Depth 1.8125 “ Pin Hole 1.00″
