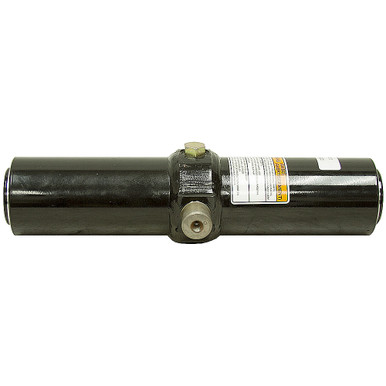

2" x 3.125" x 2" Single Acting Tandem Displacement Hydraulic Cylinder Prince BD-0070

2″ x 3.125″ x 2″ Single Acting Tandem Displacement Hydraulic Cylinder Prince BD-0070

Original price was: $79.95.Current price is: $23.99.

SKU: 903982 Category:

Description

2″ x 3.125″ x 2″ SINGLE ACTING TANDEM DISPLACEMENT HYDRAULIC CYLINDER
New, Prince Mfg model BD-0070 welded, double-rod, displacement-type cylinder. Two separate displacement cylinders with one port between them. User must install cylinder in such a way that the stroke of each rod is limited to 3-1/8″. Retracted length measured from rod end to rod end (overall length).

SPECIFICATIONS
  • Dual Single Acting
  • Bore x Stroke 2″ x 3.125″
  • Barrel Thickness 9/32″
  • Pressure 3000 PSI max.
  • Rod Dia. 2.00″ (both)
  • Cylinder Tube I.D. 2-3/16″
  • Port SAE 6
  • Retracted Length 13″
  • Shpg. 23 lbs.
END MOUNTINGS
  • Rod Ends Flat
  • Trunnion Male
  • Pin Outside Width 5″
  • Pin Inside Width 3.25″
  • Pin Center to Rod End 6.5″ (Both)
  • Pin Diameter 1.00″
