Description

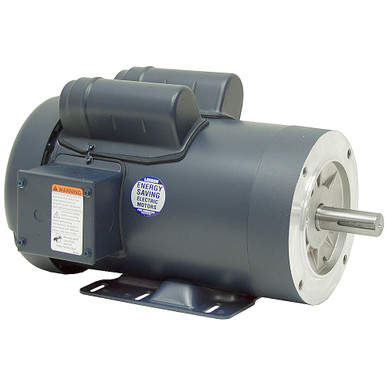

2 HP 1800 RPM 115/208-230 VOLT AC 145TC FACE AND BASE MOUNT MOTOR
Brand new, Leeson model C145K17FK2 P general purpose electric motor. Capacitor start and run. Steel housing. No thermal overload protection. Made in the USA.
SPECIFICATIONS
- Brand Leeson
- Model Number C145K17FK2 P
- Catalog Number 120274
- Power 2 HP
- Voltage 115/208-230 Volt AC
- Amperage 18.4/9.2 Amps
- Speed 1800 RPM
- Rotation Reversible
- Phase 1
- Service Factor 1.0
- Bearings Ball
- Enclosure TEFC
- Duty Continuous
- Frame 145TC
- Face Mount Four 3/8″-16 tapped holes on 5-7/8″ dia. bolt circle
- Rigid Base Mount Six 0.34″ dia. holes on 5-1/2″ x 4″ to 5″ centers
- Shaft 7/8″ dia. x 2-1/8″ w/ 3/16″ keyway
- Size 12.12″ x 8.89″ x 8.58″
- Shpg. 49 lbs.
